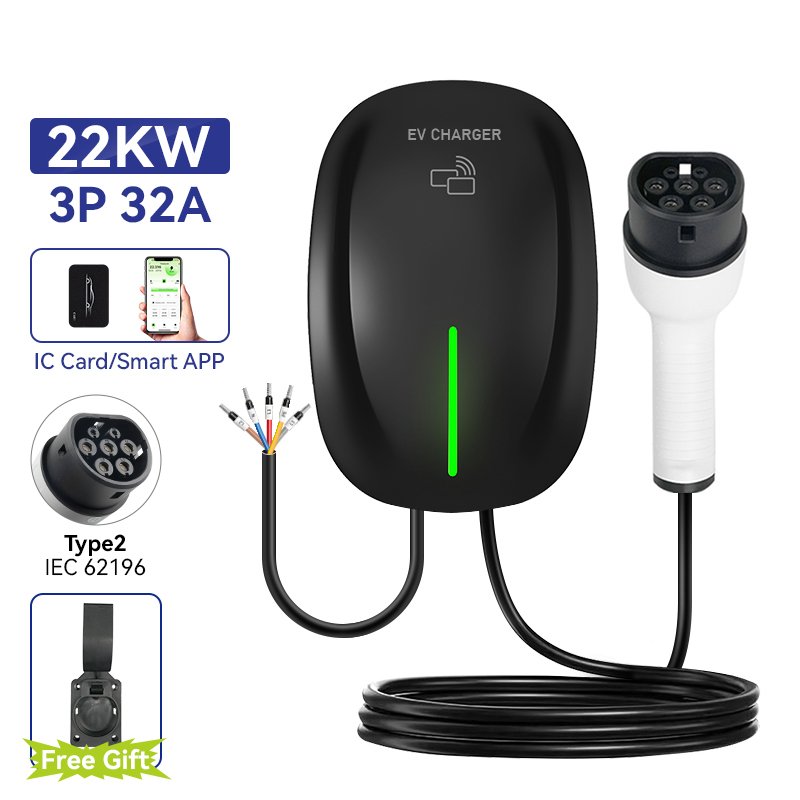

Volt Grid Smart Wallbox EV Charger (7kW–22kW)

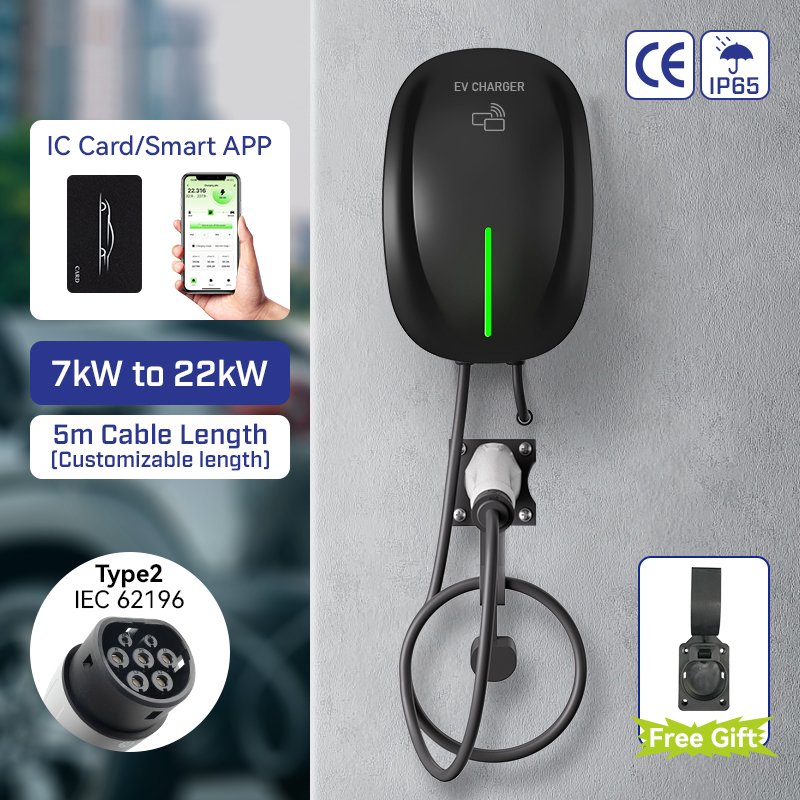

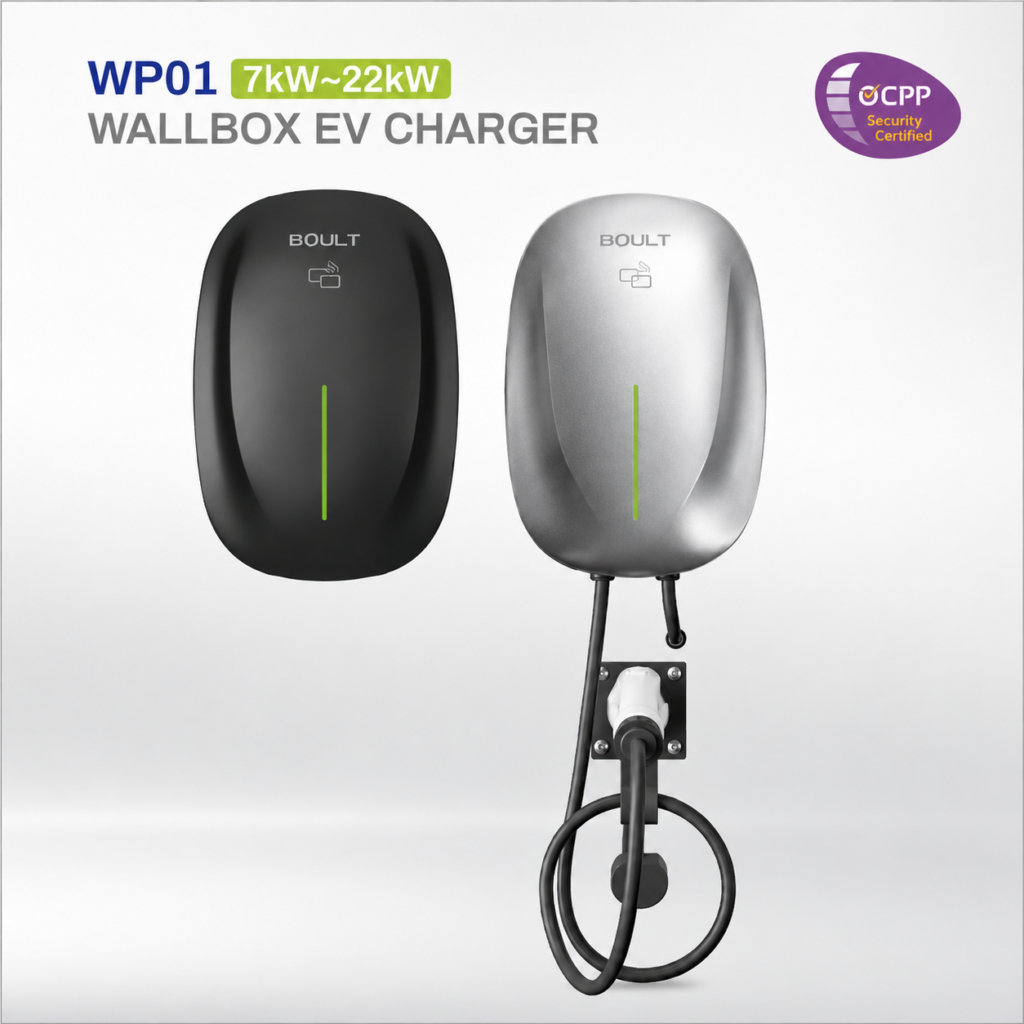

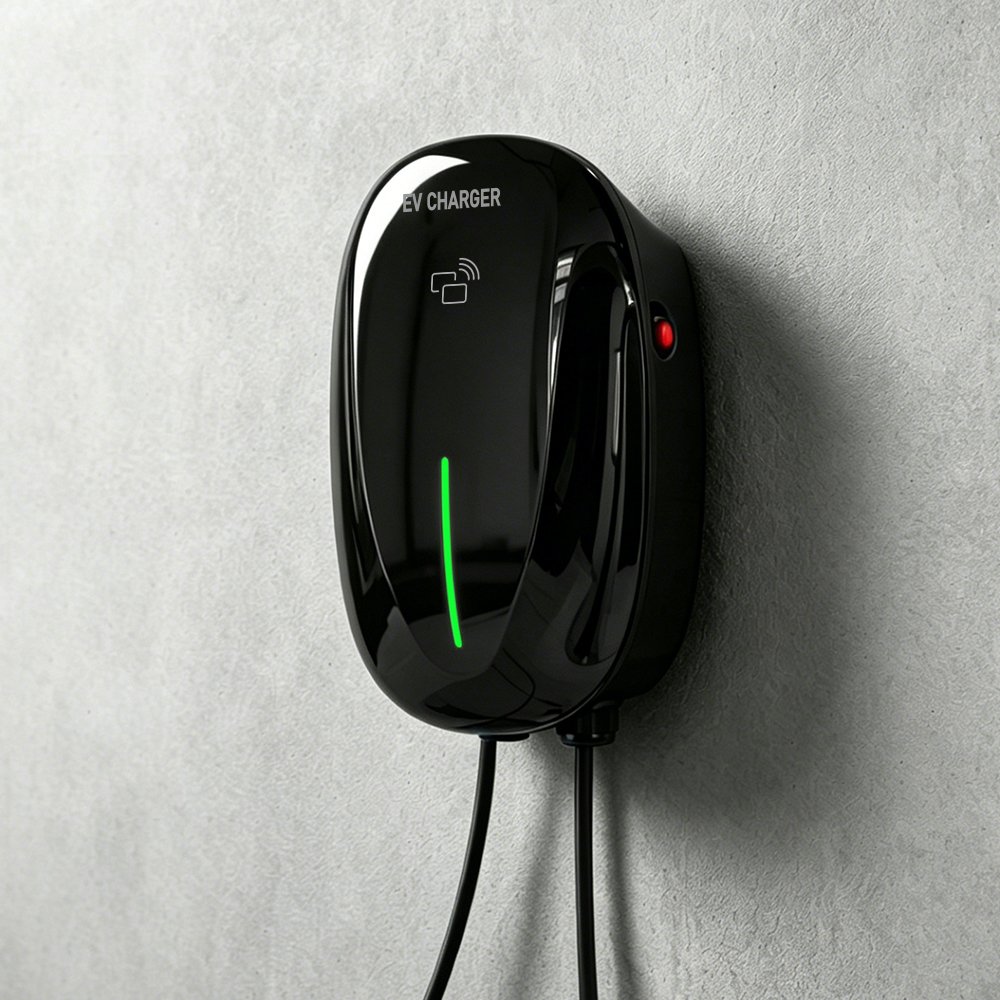

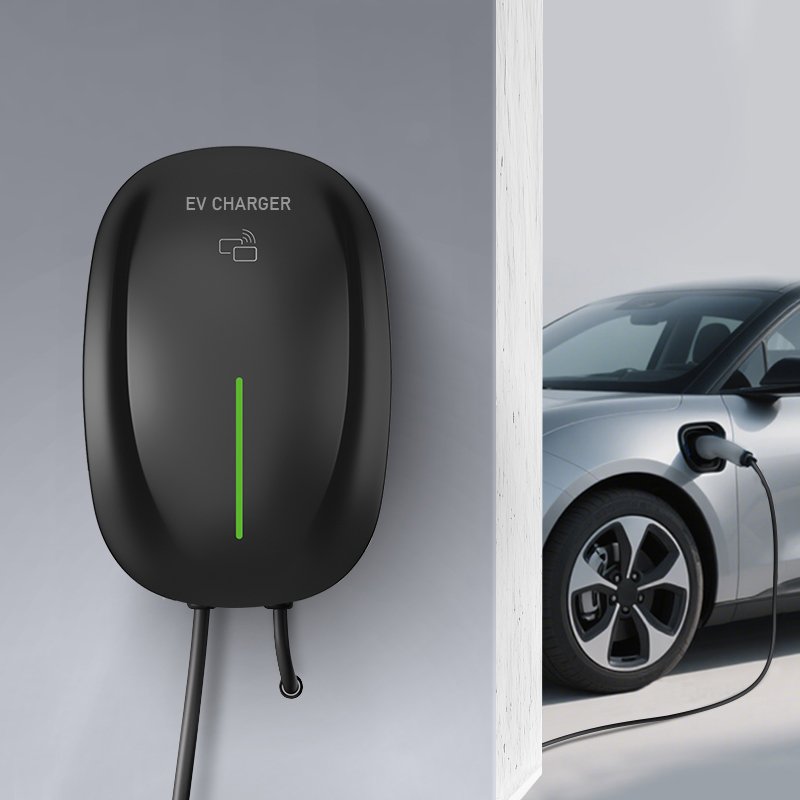

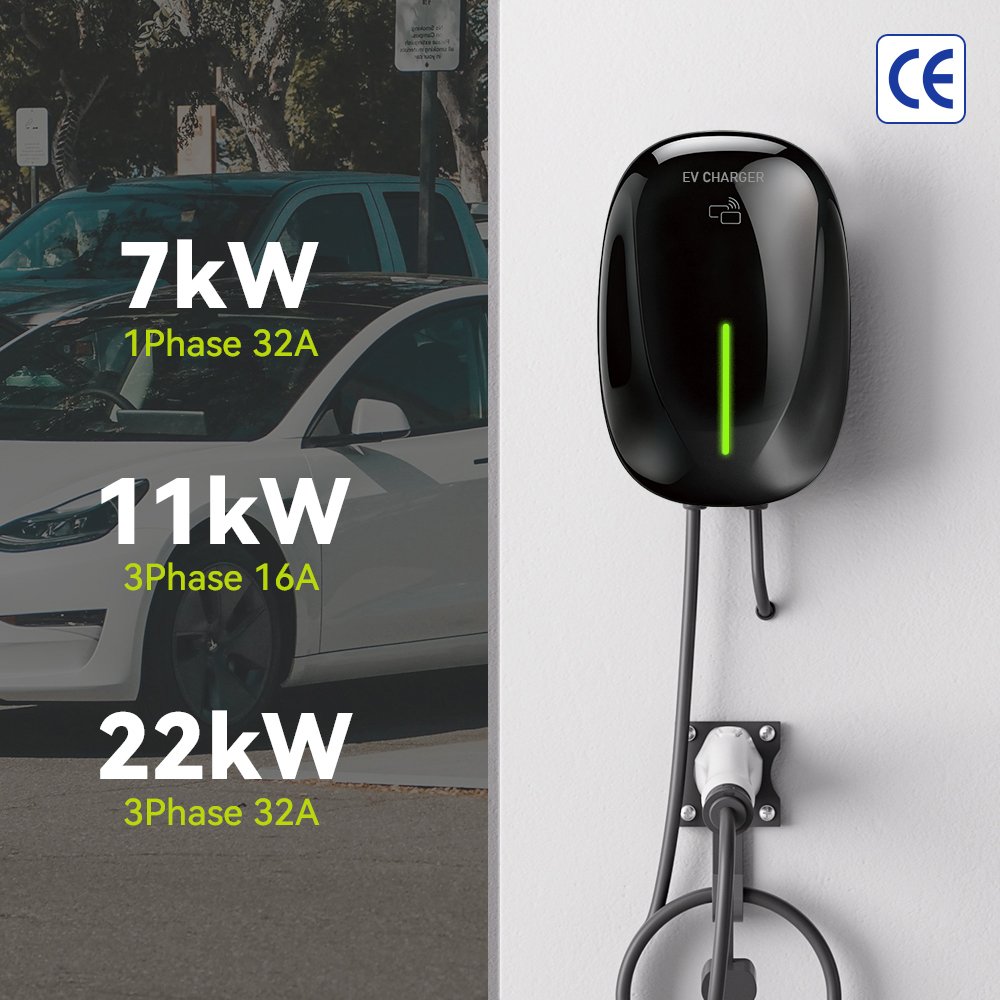

The WP01 Smart EV Charger combines sleek design with serious performance. Available in black and silver finishes, this wall-mounted charger delivers up to 22kW, OCPP security certification, and IP65 protection — ideal for homes, workplaces, and commercial installations.

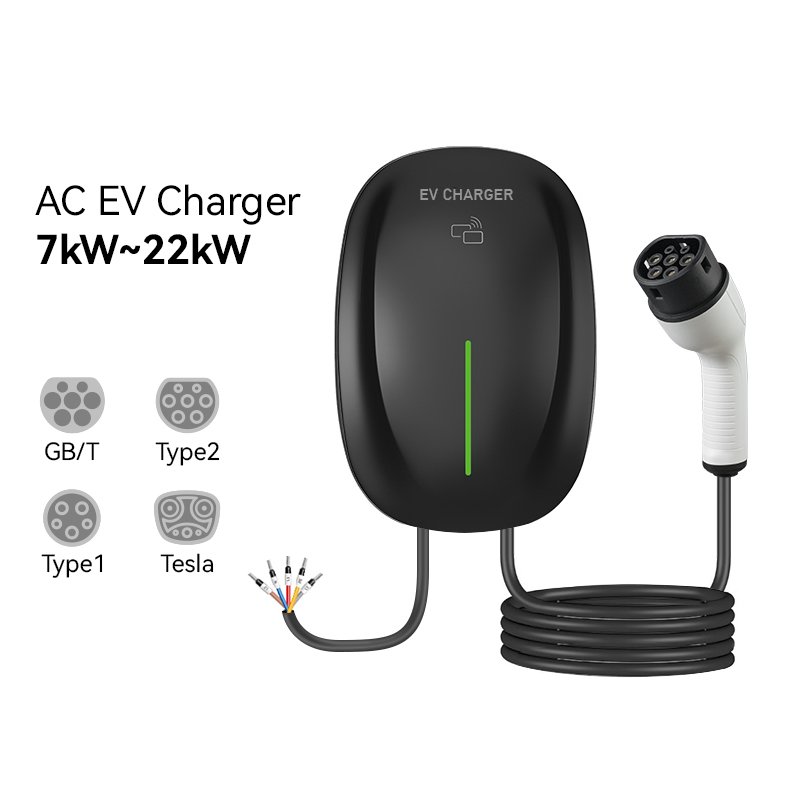

Available Connector Types
2-Year Warranty Protection
Every Volt Grid charger includes a standard 2-year warranty, with extended coverage options available.
Product Specification

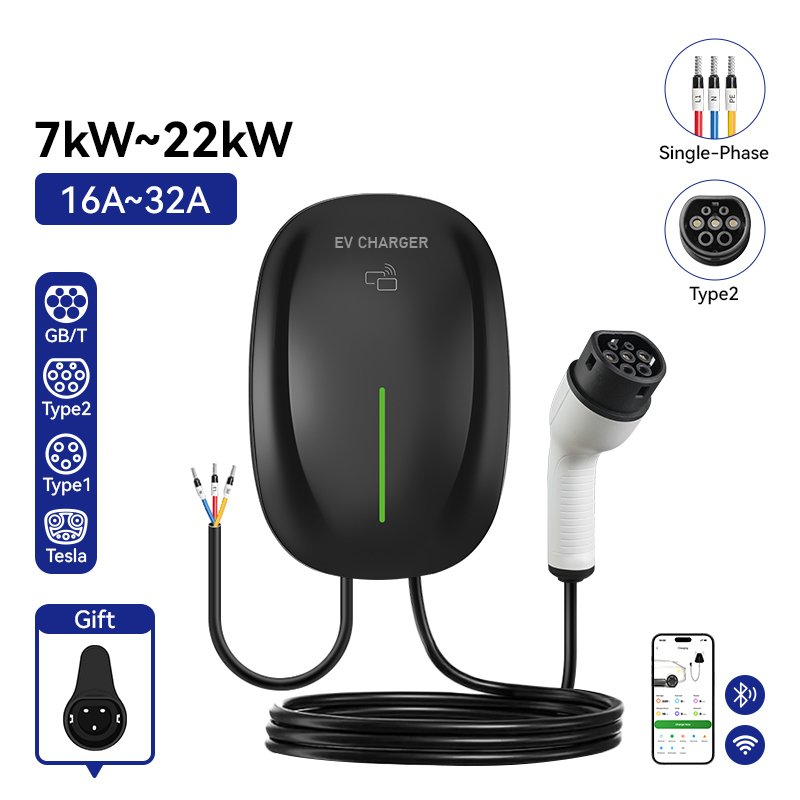

| Parameter | GB/T | Type 2 | Type 1 | Tesla |
|---|---|---|---|---|
| Input / Output Voltage | 220V / 380V | 240V / 400V | 250V | 250V |
| Max Output Current | 16A / 32A | 16A / 32A | 30A / 40A / 48A | 32A |
| Rated Power | 7kW – 22kW | 7kW – 22kW | 7kW – 11.5kW | 7kW |
| Frequency | 50Hz / 60Hz | 50Hz / 60Hz | 50Hz / 60Hz | 50Hz / 60Hz |
General Specification
| Size | 310mm × 220mm × 120mm |
| Weight | < 5kg |
| Housing Material | PC |
| Mating Cycle Life | > 10,000 times |
| RCD | Type A or B + DC6mA |

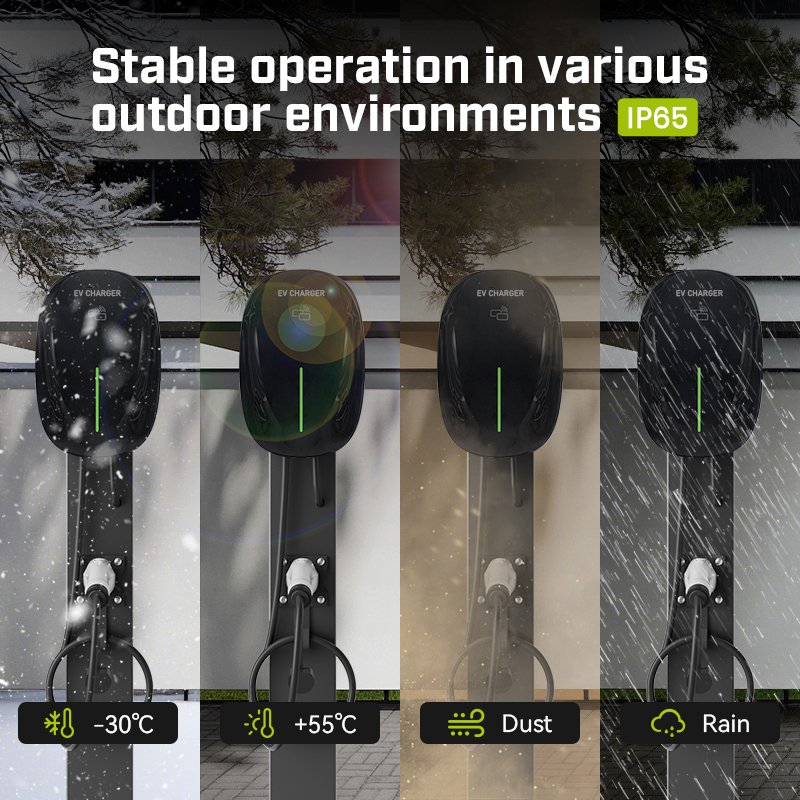

| Ingress Protection | IP65 |
| Cable Length | 5m (Customizable) |
| Phase | 1-Phase / 3-Phase |
Installation Note: Installation pricing includes a standard cable run. Custom cable solutions — including extended lengths, cable sizes, colours, and routing configurations — are available on request to suit your specific property layout. Contact our team for a tailored quote.
