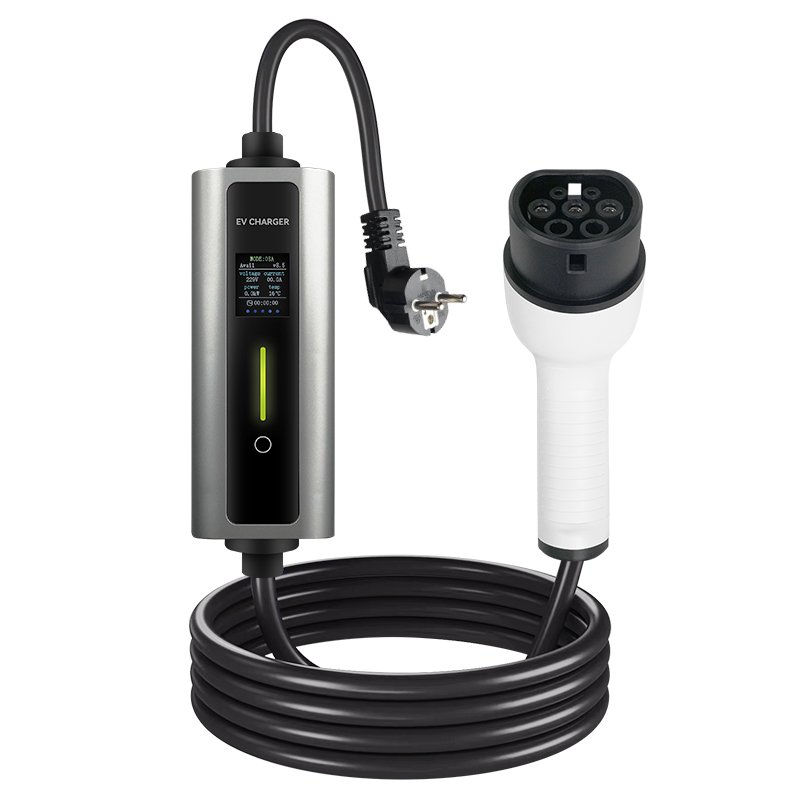

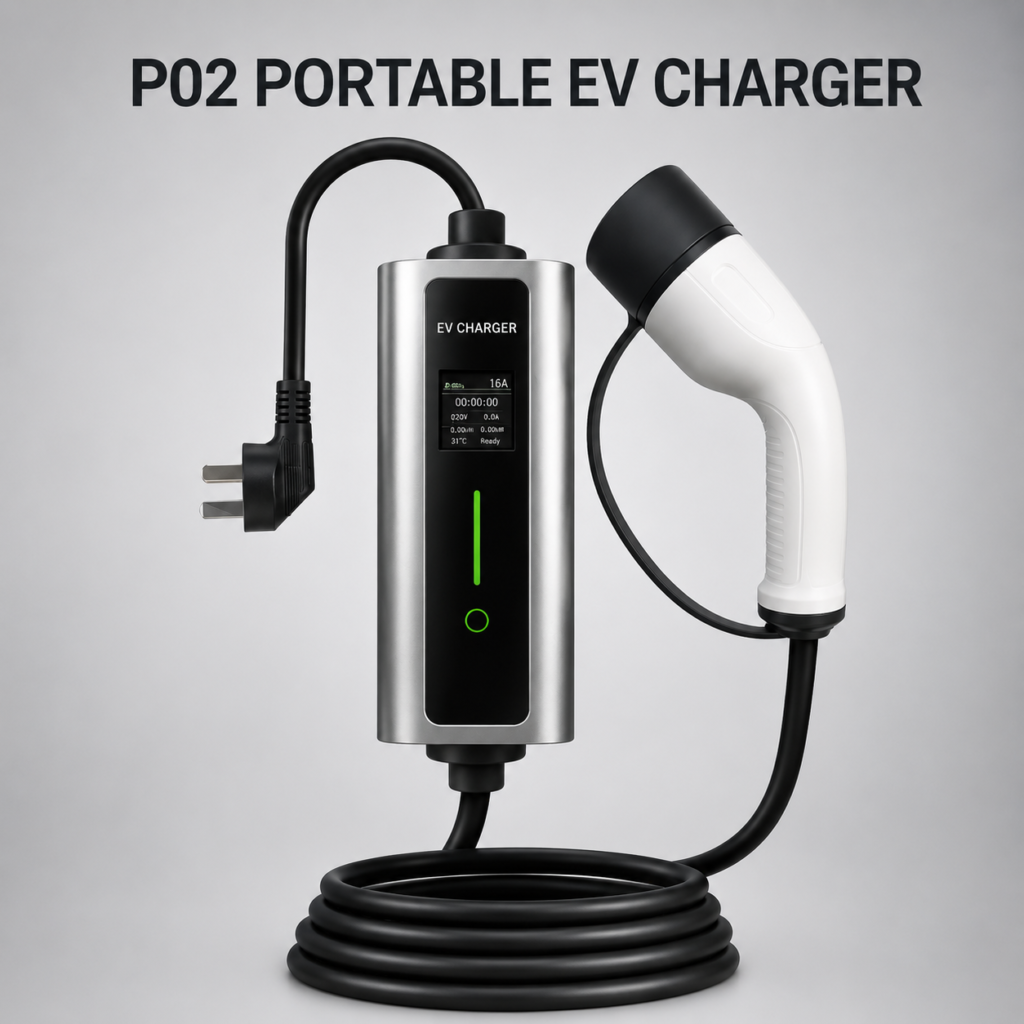

P02 Portable EV Charger | 3.5kW–7kW

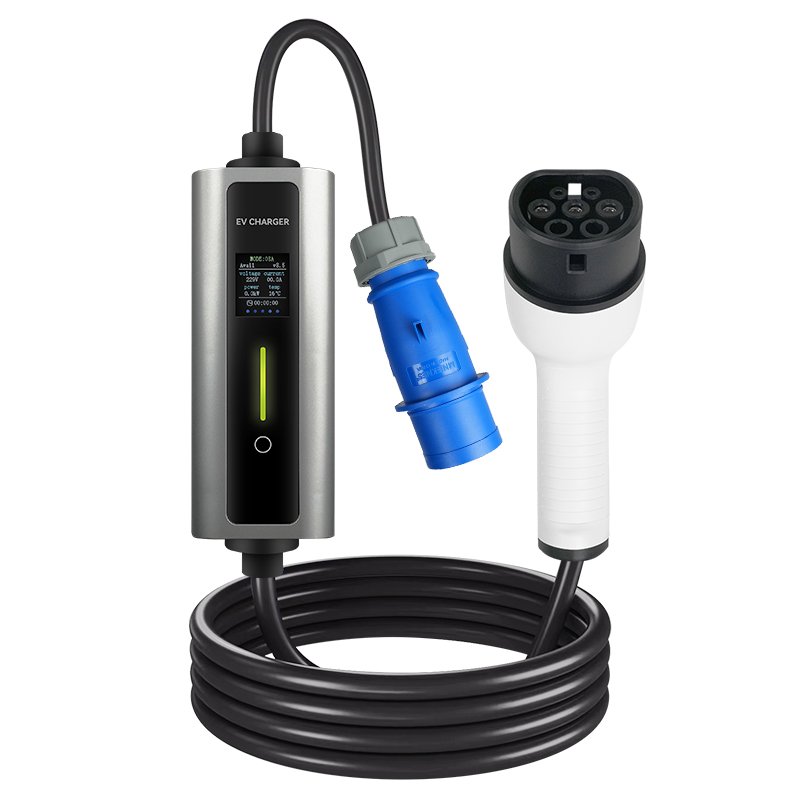

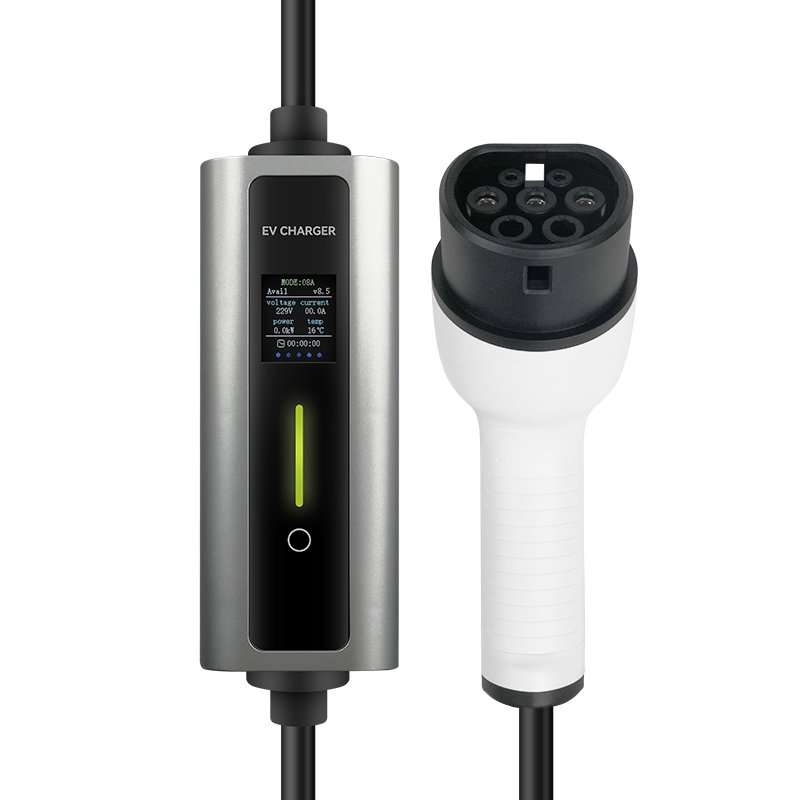

The P02 Portable EV Charger puts reliable charging power in your hands. Compact, lightweight (under 3kg), and built for everyday use, the P02 lets you charge your EV at home, at work, or on the road — with multi-region plug compatibility and support for GB/T, Type 1, Type 2, and Tesla connectors.

Available Connector Types

🛡️

2-Year Warranty Protection

Every Volt Grid charger includes a standard 2-year warranty, with extended coverage options available.

Request A quote

Description

Key Features

  • Power Output: 3.5kW–7kW, max current up to 32A

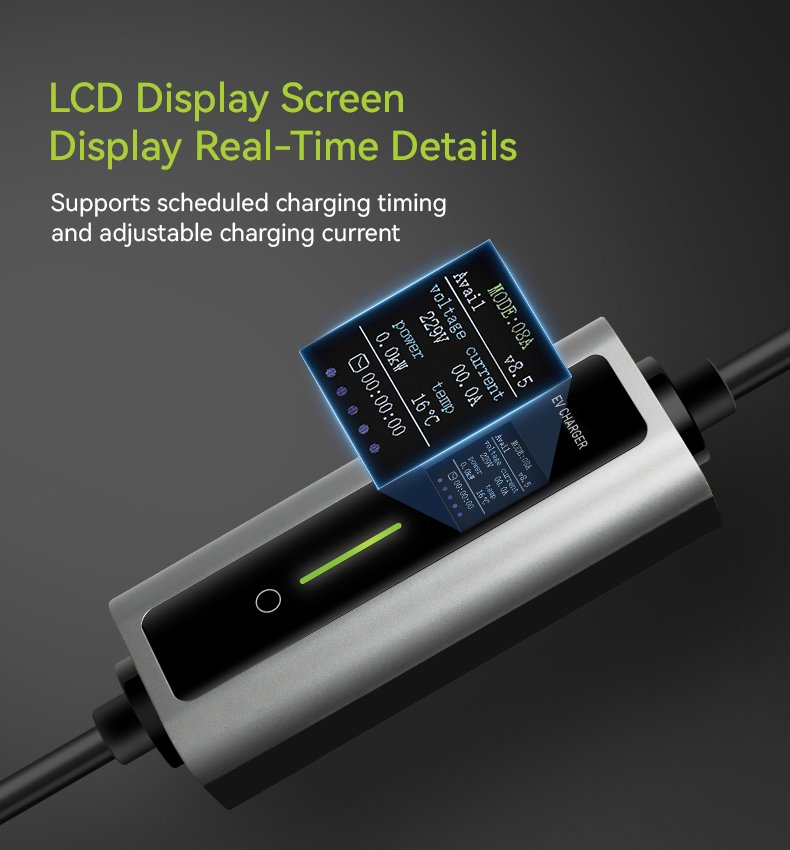

  • Built-in 1.8″ LCD display with LED indicator

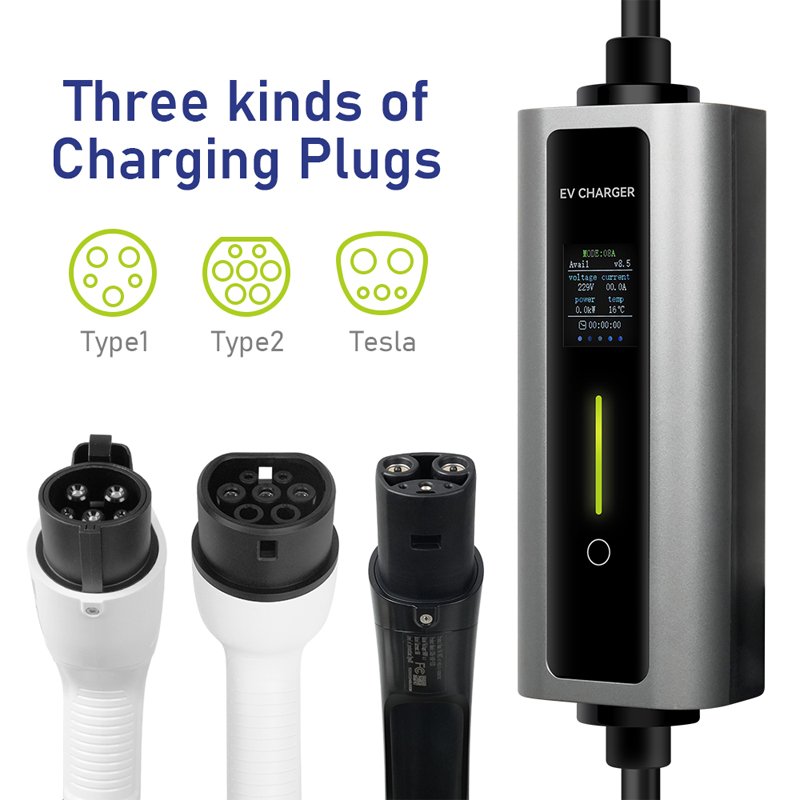

  • Compatible with GB/T, Type 1, Type 2, Tesla

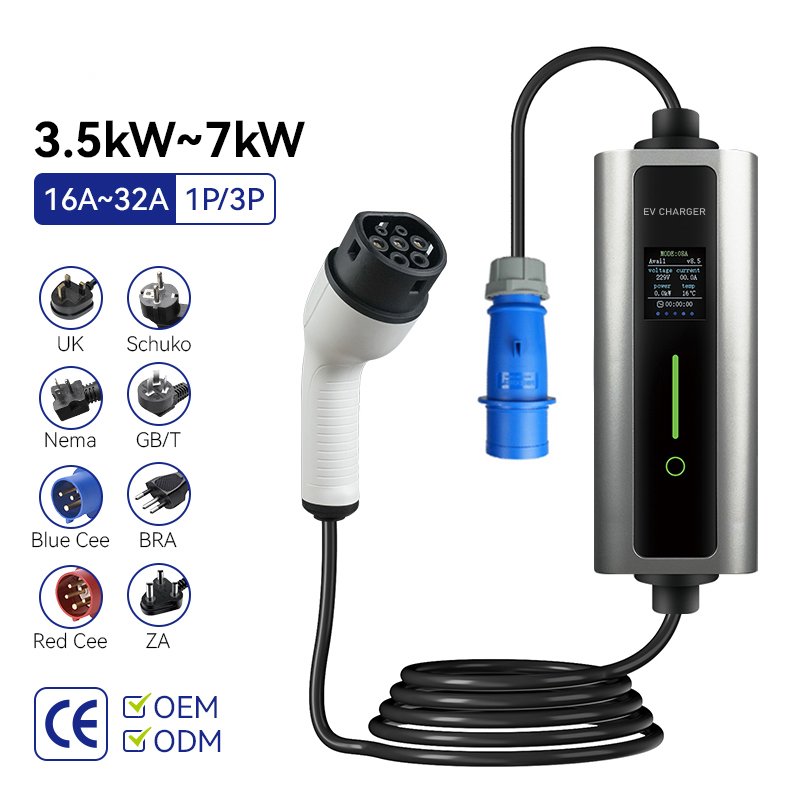

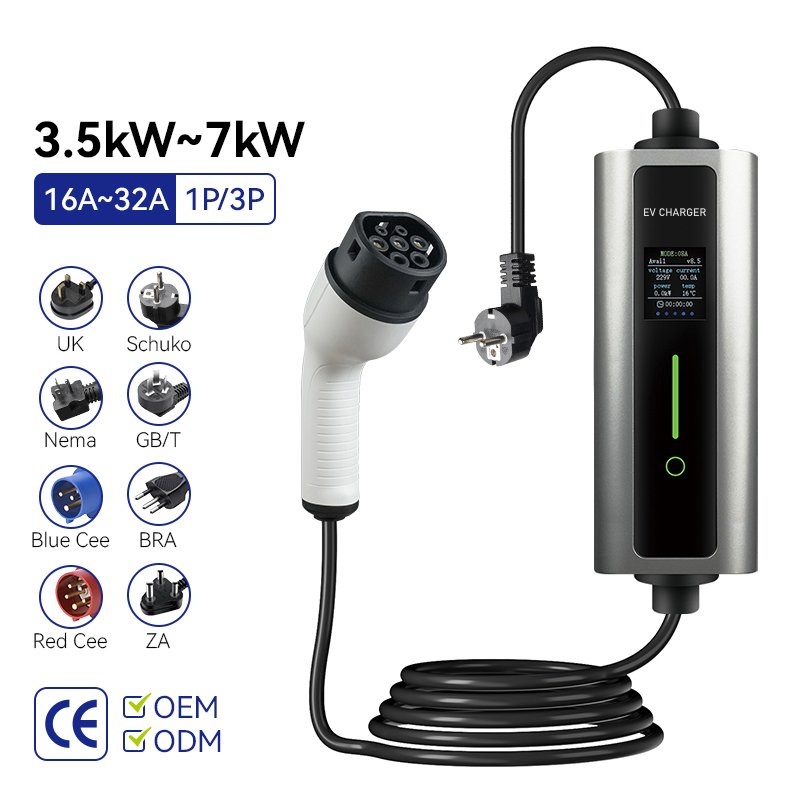

  • Multi-region plug options: Schuko, GB/T, Nema 5-20, AU, UK, ZA, BRA, Blue CEE, Red CEE, Nema 14-50 & more
  • IP55-rated, Acrylic/PC housing
  • Operates from -30°C to +55°C

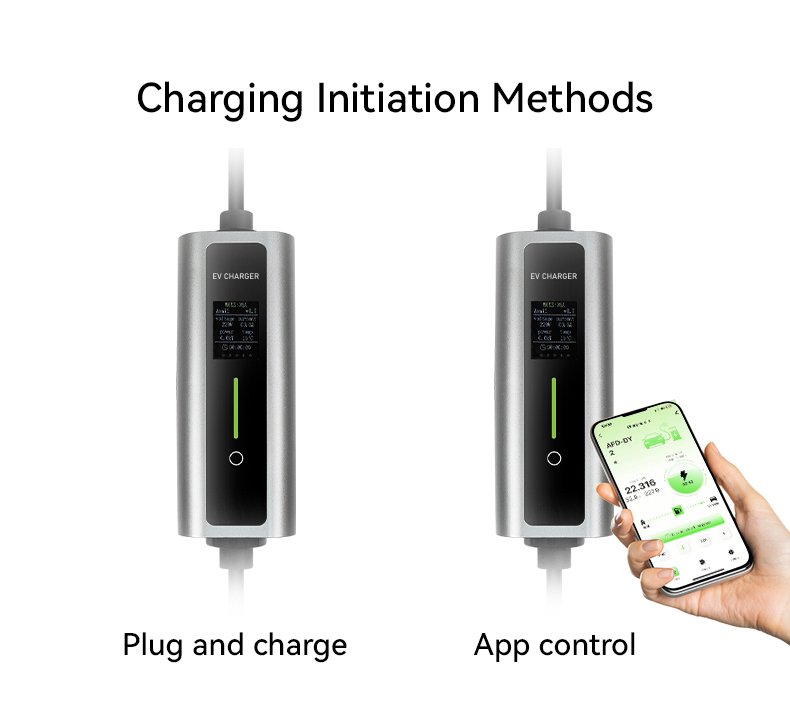

  • WiFi & Bluetooth (optional)

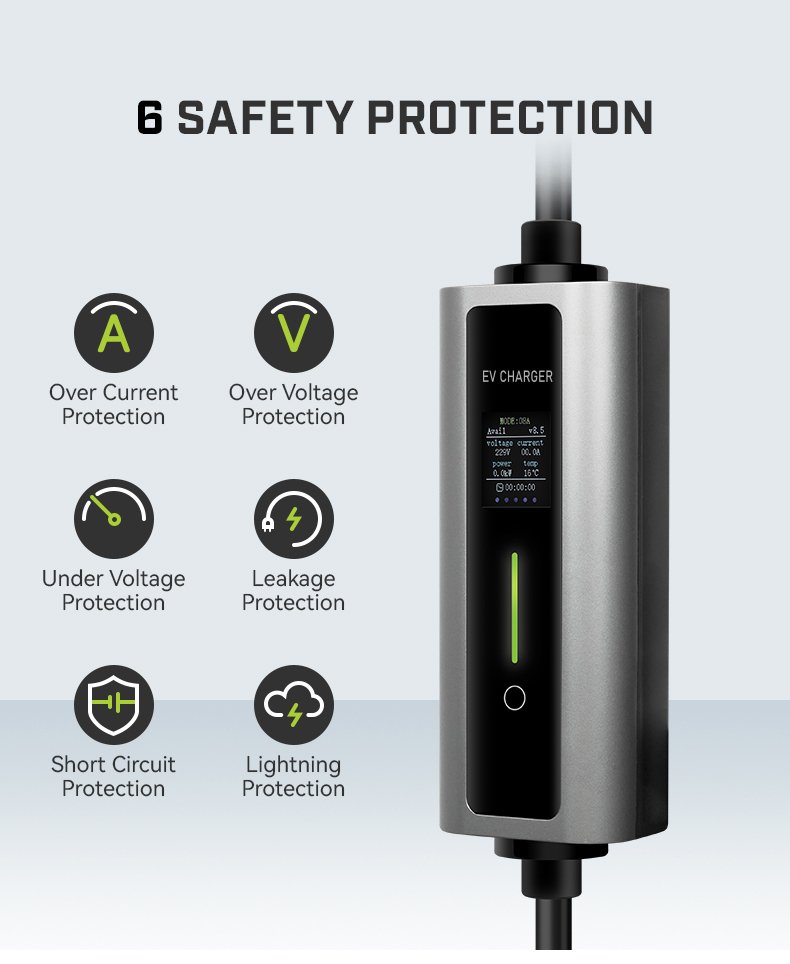

  • Built-in protections: over/under voltage, over-current, lightning, leakage, short-circuit, temperature monitoring
  • UL94 V0 flame-retardant materials
  • 5m TPU/copper cable (customizable)
  • Note: Female socket requires additional purchase

Additional information

Cable Length

17.5m to 25m, 2 to 5m, 25m +, 7.5m to 15m

Reviews

There are no reviews yet.

Be the first to review “P02 Portable EV Charger | 3.5kW–7kW”

Your email address will not be published. Required fields are marked *

Key Features

  • Power Output: 3.5kW–7kW, max current up to 32A
  • Built-in 1.8″ LCD display with LED indicator
  • Compatible with GB/T, Type 1, Type 2, Tesla
  • Multi-region plug options: Schuko, GB/T, Nema 5-20, AU, UK, ZA, BRA, Blue CEE, Red CEE, Nema 14-50 & more
  • IP55-rated, Acrylic/PC housing
  • Operates from -30°C to +55°C
  • WiFi & Bluetooth (optional)
  • Built-in protections: over/under voltage, over-current, lightning, leakage, short-circuit, temperature monitoring
  • UL94 V0 flame-retardant materials
  • 5m TPU/copper cable (customizable)
  • Note: Female socket requires additional purchase

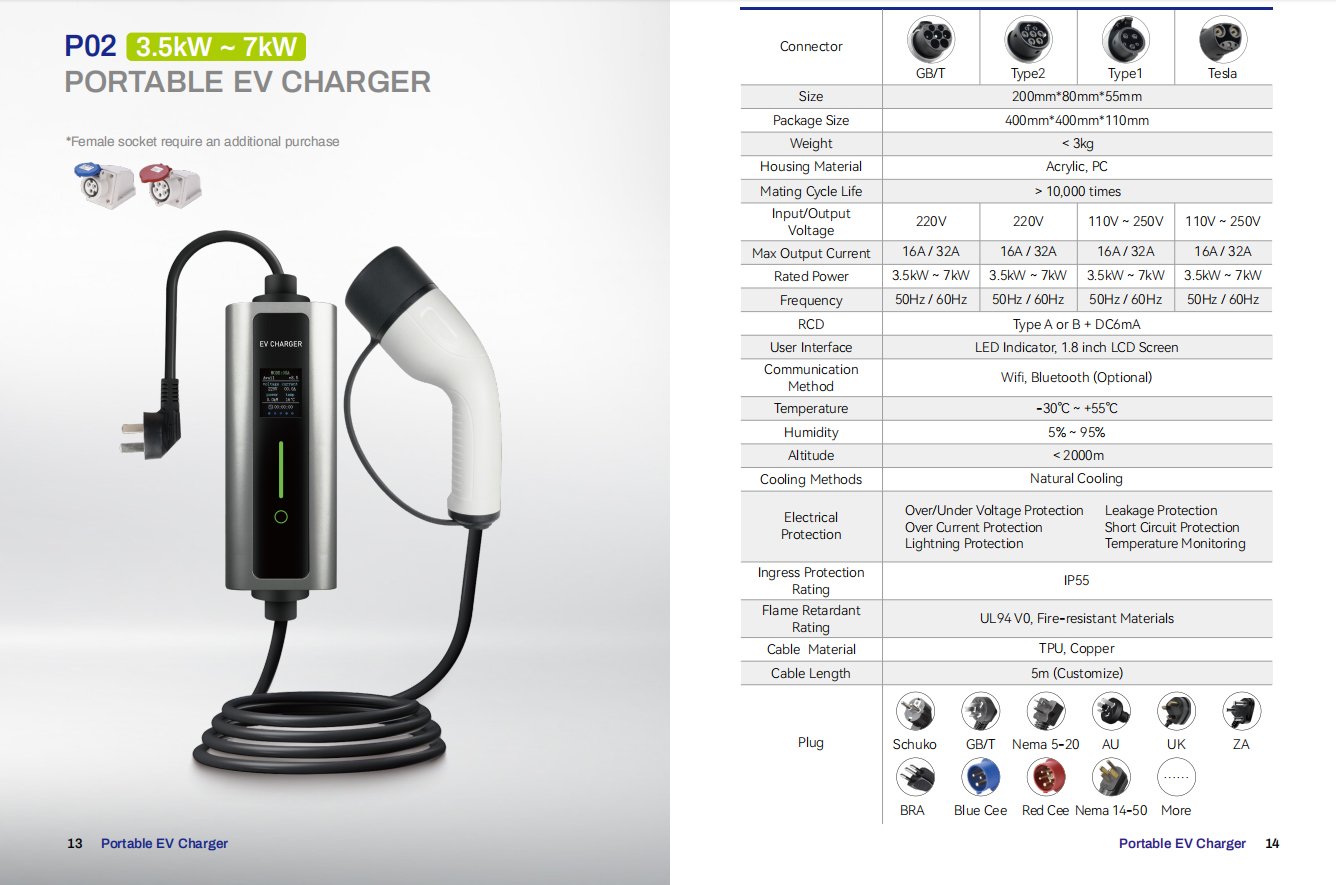

Product Specification

Parameter GB/T Type 2 Type 1 Tesla
Input / Output Voltage 220V 220V 110V–250V 110V–250V
Max Output Current 16A / 32A 16A / 32A 16A / 32A 16A / 32A
Rated Power 3.5kW – 7kW 3.5kW – 7kW 3.5kW – 7kW 3.5kW – 7kW
Frequency 50Hz / 60Hz 50Hz / 60Hz 50Hz / 60Hz 50Hz / 60Hz

General Specification

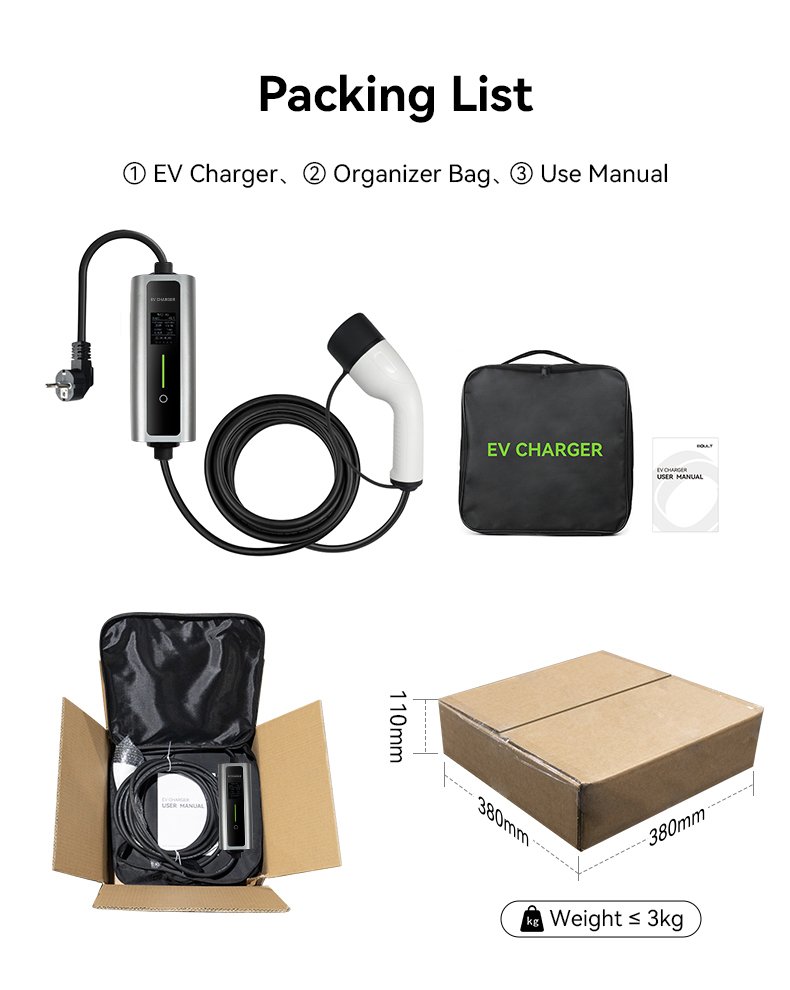

Size 200mm × 80mm × 55mm
Weight < 3kg
Housing Material Acrylic, PC
Mating Cycle Life > 10,000 times
RCD Type A or B + DC6mA
Ingress Protection IP55
Cable Length 5m (customizable)
Installation Note: Installation pricing includes a standard cable run. Custom cable solutions — including extended lengths, cable sizes, colours, and routing configurations — are available on request to suit your specific property layout. Contact our team for a tailored quote.
